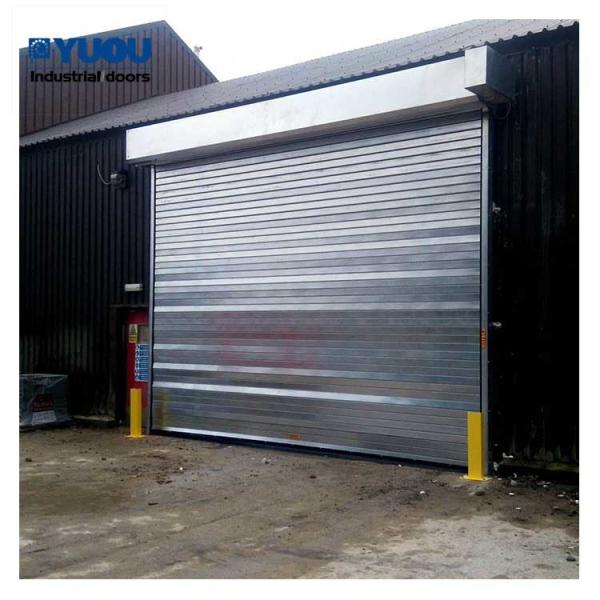

Industrial Heavy Duty Automatic Blast Proof Roller Shutter Door for Military Base

Application

Widely installed in explosion-proof partition areas, banks, chemical plants, chemical warehouses, ammunition warehouses, military bases and other places where high security requirements for anti-theft and explosion protection.

Technical Parameters:

Track desgin	The honeycomb steel is filled into the track
Explosion-proof motor	Explosion-proof three-phase asynchronous motor
	Voltage: 380V / 50HZ
	Power: 1.5kw (customized according to door size)
	Explosion-proof grade: EEXedIIBT4
	Speed: 1390r / min, low noise;
Explosion-proof control system	can still safely control the door body, will not produce any static electricity and sparks.
Control mode	Smoke detector / temperature detector / remote control
Windproof	≥38 m / s, "12 level
Running Speed	0.2 m / sec
Operating temperature	-25 ºC - 55 ºC

Features:
1. All the steel structure of the doors are cut and formed from heavy-duty steel, in order to resist the explosive, bullet, blast, etc. Plus the special track structure, customized explosion-proof control system and honeycomb steel of inner track also make sure the door body safe.
2. These special customized raw material, design and production with high quality.

Our company covers an area of 3,0000 square meters,equipped with professional technical team and

advanced production equipment .We are one of the earliest manufacturers of industrial doors in China.

27 years of experience and technical research enables us to provide all in one solution for customers in

different industries.

Our company has 152 employees, 20 engineers, can efficiently provide you with the most professional

solutions and services.We has 150 sets of production equipment, more than 20 production lines.Most

professional customized services and shortest leading time we can ensure.

We have participated in Beijing Doors and Windows Exhibition, Shanghai R+T Shading Exhibition,

Canton Fair, BIG 5 and other large international exhibitions.

Our factory has obtained ISO9001, 14001,18001 system certification, fire CCC certification, CE,UL and

SGS international certification, and 25 patent certificates.
