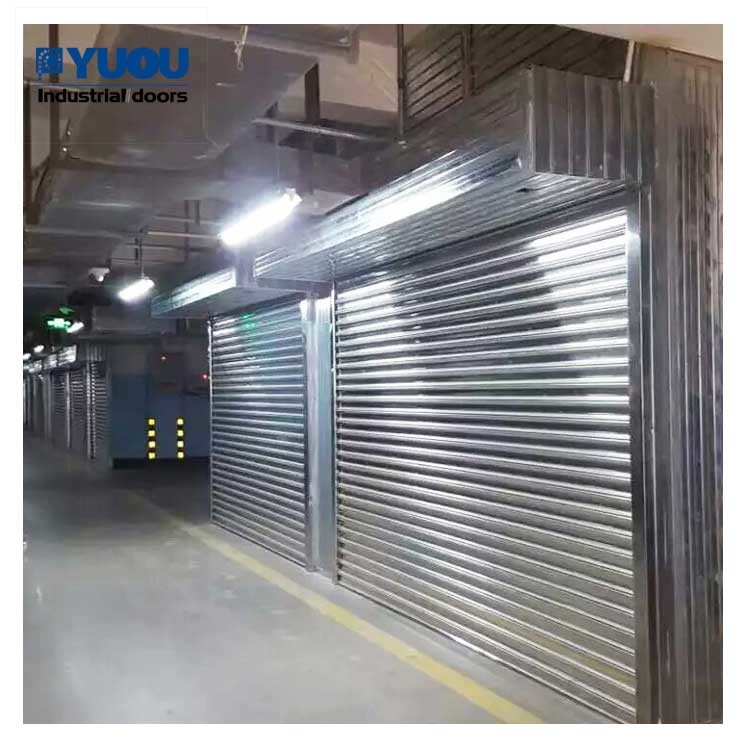

Automatic CCC Certificated Electric Fire Resistance Steel Roller Shutter Door

Technical Data

Model	Fire rated Stell Roller shutter door
Material	Double skin 0.8mm thickness
Inside filling	Aluminum silicate wool
Max. door size	width * height 8000mm*10000mm
Opening and closing speed	5-7.5m/min
Motor	Chinese top brand
Fire rated time	≥3 hours
Open style	Roller
Wind resistance	10level-12level(34m/s)
Smoke leakge	≤0.12M3/(SQM/MIN)
Certificate	Chinese CCC

Certification:

Chinese CCC certification, issued by The Ministry of Public Security

Door slats:

A.Double skin 0.8mm thickness

B.Aluminum silicate wool is filled in the middle.

Tracks:

A. Galvanized steel thickness:1.5mm-3mm

B.Expansion seal: At high temperatures , the sealant will expand to cover the gap of the rail to isolate smoke and temperature.

Motor:

A. Chinese top brand "AN LIN"

B. Can be opened manually when power failure

Hood cover box:

1mm power coated galvanized stee

Export Packing stadard:

Multi-layer plastic bubble film pack all the parts carefully.

Carton box to make all the little parts safe and clearly.

Put all the packaged parts into the Export wooden box, and seal the wooden box

Application:

Steel fire proof roller shutter door's fire limit is greater than 3hours. Widely used in shopping malls, hotels, office buildings, underground garages and other public places divided into fire zones.

Our company covers an area of 3,0000 square meters,equipped with professional technical team and

advanced production equipment .We are one of the earliest manufacturers of industrial doors in China.

27 years of experience and technical research enables us to provide all in one solution for customers in

different industries.

Our company has 152 employees, 20 engineers, can efficiently provide you with the most professional

solutions and services.We has 150 sets of production equipment, more than 20 production lines.Most

professional customized services and shortest leading time we can ensure.

We have participated in Beijing Doors and Windows Exhibition, Shanghai R+T Shading Exhibition,

Canton Fair, BIG 5 and other large international exhibitions.

Our factory has obtained ISO9001, 14001,18001 system certification, fire CCC certification, CE,UL and

SGS international certification, and 25 patent certificates.
