3 Hours Fire Resistant Inorganic Fabric Cloth Fire Rated Roller Shutter Doors

Description

Fire Shutters are an increasingly popular option and offer fire protection at up to four hours greater than would be the case for
a standard non fire rated door or shutter. They can be used to section off and protect a particular part of a building, the whole
building, or even provide protection between floors.

Technical Data

Model	Inorganic cloth fire proof roller shutter door
Power supply	AC380V, 50HZ, control power DC24V
Fire proof performance	The average temperature rise of back fire surface is 74.9 ℃, single point of the highest temperature 96.7 ℃
Max. door size	Roller type: 12m*12m or customized
Door curtain thickness	17.44mm thickness, double track and double curtain
Opening and closing speed	10-710m/min
Motor and controller	Fire proof
Fire rated time	≥3 hours
Surface finishing	Finished
Opening way	Electric/Manual chain
Smoke leakge	≤0.12M3/(SQM/MIN)
Certificate	Chinese CCC
Warranty	1 year

Standard:
Comply with China National standard GB14102-2005 Fire Roller Shutter Door
Guide rail:
2.0mm thick galvanized steel. Surface is galvanized

Hood cover box:

1mm power coated galvanized steel

Door curtain:

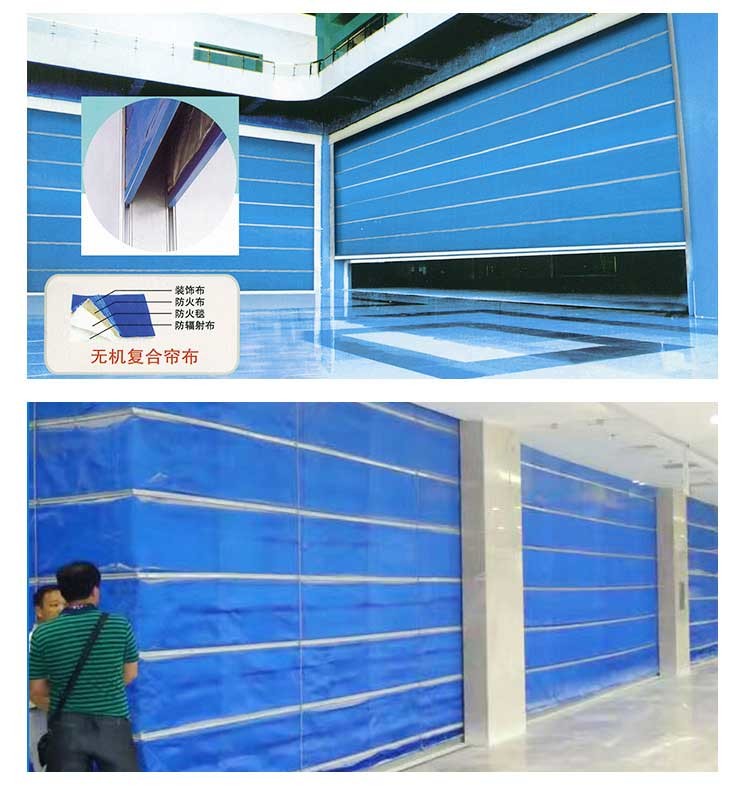

A. The curtain is made of four layers of fireproof material, that are glass fiber cloth, aluminum silicate cotton, ceramic fiber cloth and radiation protection cloth.
B. Double rail and double curtain structure, with better heat and smoke resistance performance

Our company covers an area of 3,0000 square meters,equipped with professional technical team and

advanced production equipment .We are one of the earliest manufacturers of industrial doors in China.

27 years of experience and technical research enables us to provide all in one solution for customers in

different industries.

Our company has 152 employees, 20 engineers, can efficiently provide you with the most professional

solutions and services.We has 150 sets of production equipment, more than 20 production lines.Most

professional customized services and shortest leading time we can ensure.

We have participated in Beijing Doors and Windows Exhibition, Shanghai R+T Shading Exhibition,

Canton Fair, BIG 5 and other large international exhibitions.

Our factory has obtained ISO9001, 14001,18001 system certification, fire CCC certification, CE,UL and

SGS international certification, and 25 patent certificates.
