Application scope:

Food and Drug factory, Warehouse, Supermarket

Technical instruction:

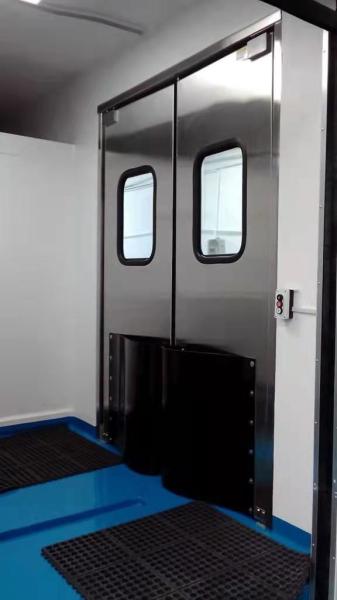

Door panel thickness:40mm (Heavy duty). Inside is filled with thermal-insulation material . Surface is high-strength stainless steel or ABS PVC fiber resin plate. With excellent crash-resist, cold resistance, high-temperature resistance, chemical resistance, and anti-corrosive. It can work under very humid environment and be washed directly with water. Anti-collision rubber plate is installed at bottom of door leaf. The staff can drive forklifts or trolley to hit the door open directly. This improves passing efficiency obviously.

① Sizes:

Single Door 600 ≤ width≤ 1200mm, 1800 ≤ height ≤ 3000mm

Double Door 1200 ≤ width ≤ 3000mm, 1800 ≤ height ≤ 3000mm

② Free opening:Every door leaf can open to both outside and inside, improving traffic efficiency obviously.

③Auto-closing:Door axis is special eccentric design. The door body leans along the axis,generating a force reverse with opening direction. Thus the door will close automatically. Heavy-duty hinge make sure long time frequent operation.

④Clear window:

The staff can see the opposite side through the window, and avoid crashing accidents when passing the door. Double layer PMMA material, complying with security requirements. It will keep in good condition after long-time frequent crashing. Even if it got broken, it will not breaks into pieces like regular glass. This can avoid harming human or polluting the environment. Standard size:400mm*450mm. Shape and sizes can be customized.

⑤Anti-collision rubber plate

Arc shape with very good structure elasticity. It can endure frequent collisions.
