PVC High Speed Zipper Doors adopts Italy servo motor technology,
with better stability and quicker response than tradtional
frequency motor.
Technical Data
| Max. dimension | width * height 5000mm*5000mm |
| Power supply | 220±10%V, 50/60Hz. Output power 0.75-1.5KW |
| Door curtain | PVC fabric |
| Fabric color | yellow ,blue ,Red ,grey,white |
| Steel structure | Galvanized steel |
| Motor and controller | Italy servo technology |
| Safety device | Photo sensor, airbad sensor, light alarm |
| Wind resistance | Beaufort scale8(25m/s) |
| Protection level of electric | IP55 |
1. PVC Fabric:
Material: 1.0mm thick PVC Fabric
Other Thickness available: 1.2mm, 1.5mm
Function and performance: UV-resistant, Fire-resistant,
Anti-mildew, Anti-bacteria, Self-cleaning, Oil-resistant, Acid and
Alkali resistant, Anti-wicking, Anti-aging.
Special zipper design structure, connects the fabric and guide
rails as a whole body, eliminating gap between them. It obviously
improves overall seal performance and air tightness.
2. Motor
Italy servo technology motor. Power supply 220±10%V, 50/60Hz.
Output power 0.75-1.5KW; Work temperature: -30-60 degree Celsius.
With more accurate limiting and much longer work life than
traditional brake motor.
3. Control system
Italy servo technology control system. With more accurate
controlling of motor running than traditional encoder control. And
Human-Machine Interface display is equipped, to make the daily
operation and setting much easier and friendly. There is Fault
Self-checking program and shows error codes when there is fault.
4. Frame and tracks
Two guide rails, one top cover and one motor cover included.
Thickness: 1.5 mm for guidrail and 1.0 mm for cover box.
Material material: standard is galvanized steel
Optional material: 304 stainless steel or aluminum alloy.
5. Safety performance
A. Safety photo cell sensor.
When there is human or vehicle under the door, the door will stop
closing and get up automatically. This will avoid accident
collisions.
B. Safety bottom airbag sensor
When the bottom bar of the door touches something, it will stop
closing immediately and get up automatically.
C. Alarm light
When the door opens or closes, the lamp will keep flashing to warn
passing human or vehicles.

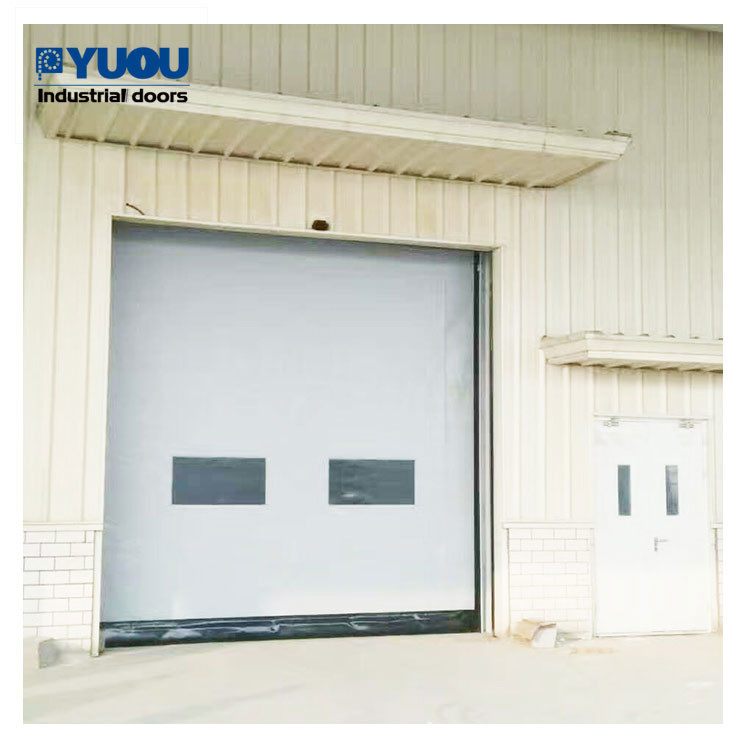

Product real photos
