Technical Data
| Model | Fire rated Stell Roller shutter door |
| Material | Double skin 0.8mm thickness |
| Inside filling | Aluminum silicate wool |
| Max. door size | width * height 8000mm*10000mm |
| Opening and closing speed | 5-7.5m/min |
| Motor | Chinese top brand |
| Fire rated time | ≥3 hours |
| Surface finishing | Finished |
| Wind resistance | 50-66kp(30m/s) |
| Smoke leakge | ≤0.12M3/(SQM/MIN) |
| Certificate | Chinese CCC |
| Warranty | 1 year |
Standard:
Comply with China National standard GB14102-2005 Fire Roller Shutter Door
Door slats:
A.Double skin 0.8mm thickness
B.Aluminum silicate wool is filled in the middle.

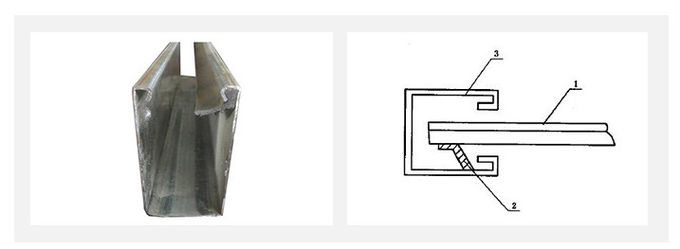

Guide rail:
2.0mm thick galvanized steel. Surface is galvanized
Motor:
(Fireproof) Industrial grade motor specially used for Roller Shutter Door. The
best brand of motor in China Power supply:380V/50HZ,Power:
0.3-1.5KW. Wore temperature:-25 ℃-55℃. Low noise.
Control panel:
Fireproof control box specially used for Roller Shutter Door. The
best brand of control panel in China ALAND. Through it , user can
control the door manually for UP,DOWN,STOP. And it can also be
connected with Fire Control Center, or with smoke sensor or
temperature sensor, to control the door movement automatically in
case of fire accidents.
Hood cover box:
1mm power coated galvanized steel
Export Packing stadard:
Multi-layer plastic bubble film pack all the parts carefully.
Carton box to make all the little parts safe and clearly.
Put all the packaged parts into the Export wooden box, and seal the
wooden box

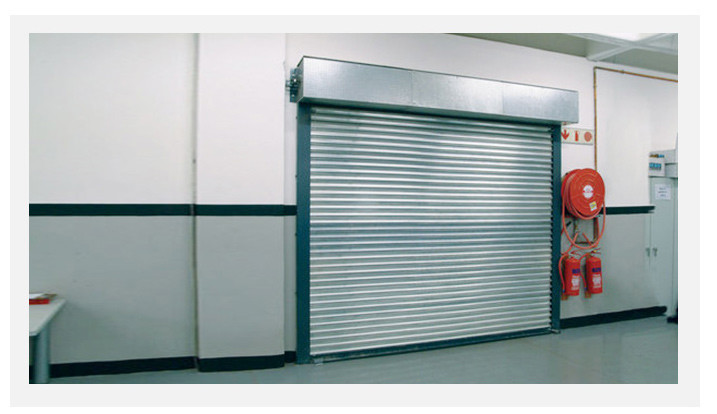

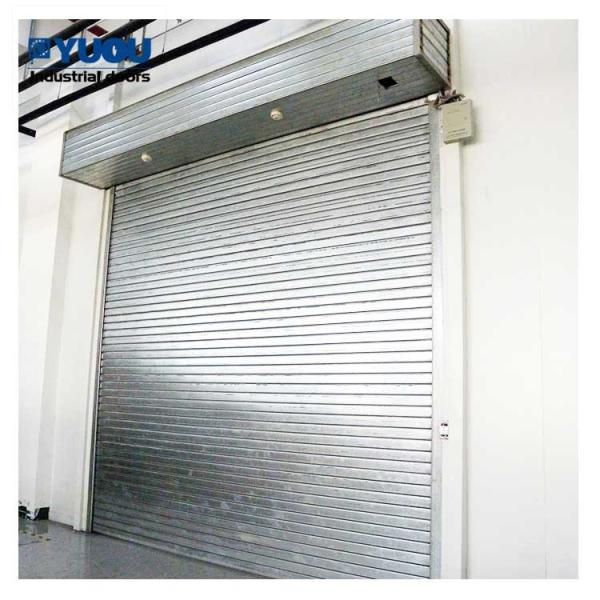

3 hours fire shutter
Fire Resistant Roller Shutters are designed for openings with
fire-resistant walls where isolating or resisting the passage of fire is required. They
are commonly used as part of an integrated fire prevention system
in applications such as shopping centres, hospitals, aged care
facilities, hazardous goods storage, warehouses, factories and
office buildings.
