Technical Data
| Lifting method | Standard lift, high lift, vertical lift |

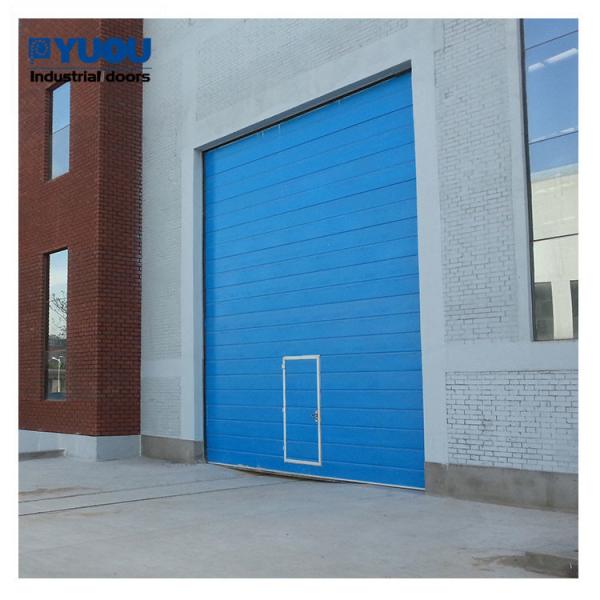

| Configuration | Clear window and pedestrian door |
| Opening and closing speed | 20-40cm/s |
| Door panel | Steel plate + PU foam |
| Components | Motor, airbag, spring brake device, cable break device, pulleys,
control box, brackets |
| Wind resistance | 28-35m/s (Class 10-12) |
| Operation method | Control box, remote control |
| Guide rail | Galvanized steel |
| Operation counts | Max 100times /24 hours |
| K value | 1.5W/M2.K |
| Thermal conducivity | ≦ 0.033W/M.K |
1. Installation environment
Installation site: outside or inside room
Wind resistance: 30m/s , Class 11
2. Excellent insulation performance
The total thickness of the door panel is 40 mm, density of PU foam
is 48kg/m3
It has excellent thermal insulation performance
3. Automatic/ manual dual operation mode
When power is off or faulty, it can be turned on or off by manually
operating the chain. The balanced torsion spring system conteracts
most of the tension at the opening. It can be opened with a little
force by hand ( 180N) or easily opened with a hand chain.
4. Balance spring
Spring brake device :anti-broken
Service life:100 thousand opening and closing
Driving force:140N
Chosen according to door size, weight and lifting pattern.
5. Accident-dropping safety device
Equipped with dropping avoiding steel cord at the bottom, to secure
the accident dropping within 5cm
6. Guide rail
Special design three angle wheel brace secure smooth rolling of
wheel
Noise level ≤60db
7. Manual chain device
Equip with manual chain in case power failure
8. Rail strengthening plate
2.0mm galvanized steel plate
9. Security performance
Bottom sensor: it makes the door body lift back when touching
something during closing and stops the movement during opening.

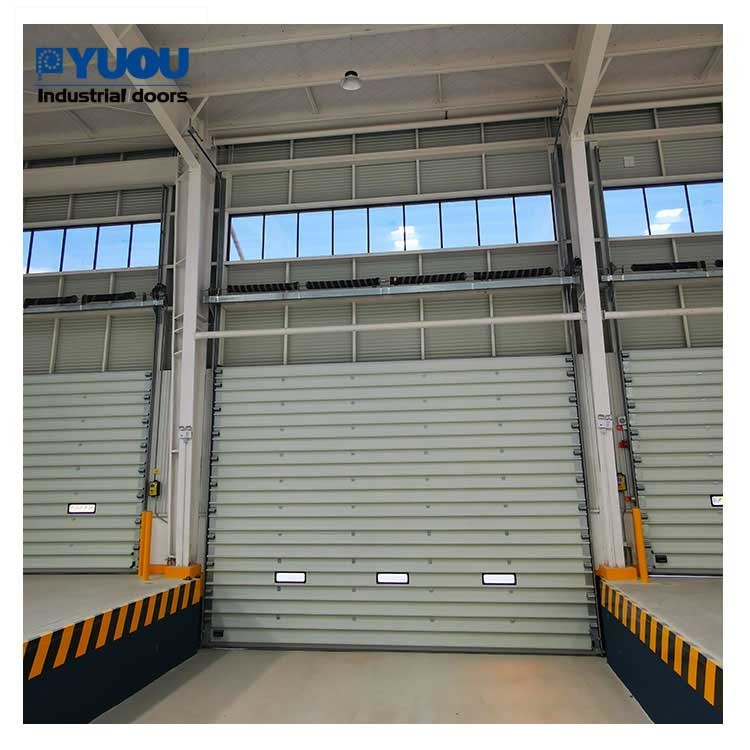

Sectional door advantages
Industrial sectional door, as the best choice of the outdoor of the
modern architecture, enjoys the perfect durability and sealing, the elegant aprrearance, the simple operating system and the spring
balanced system, which is used durably and cleaned easily with the
special designing door panel.
