6*6m PVC High Speed Roller Shutter Door Plastic Fabric 25m/S Wind Resistant

Ask Lasest Price
Brand Name :	YUOU
Model Number :	Yuou-high speed-21
Certification :	ISO9001
Price :	$800.00 - $1300.00/Piece
Payment Terms :	D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability :	1000 Piece/Pieces per Month
Delivery Time :	7-10 work days

Add to Cart

Product Details
Company Profile

6*6m PVC High Speed Roller Shutter Door Plastic Fabric 25m/S Wind Resistant

Finished Surface PVC Plastic Material Fabric Fast High Speed Roller Shutter Door

Application:

High speed doors are widely used in food, chemical, textile, electronics, supermarket, cold storage, logistics, warehousing and other production efficiency, dust-free and high temperature level requirements.

Product details:

1. Technical data:

Max dimension :	width * height 6000mm*6000mm
Power supply:	220±10%V, 50/60Hz. Output power 0.75-1.5KW
Normal speed :	open1.2m/s close 0.6m/s
Max speed :	open 2.5m/s close 1.0m/s
Opening frequency :	1000 times /day
Wind resistance :	28m/s (Class 10)
Air tightness:	leakage through the door is 95m³/hour under 30 pa pressure

2. PVC fabric

A. Material:PVC Fabric; Standard 1.0mm thick(950g/sqm);

B. Available thickness:1.2mm-1.5mm; Flame resistant material.

3. Frame and Tracks

Two guide rails,one top cover and one motor cover included.Thickness:1.5mm for guide rail,1.0mm for cover box.

A.Standard material: Galvanized steel,surface is painted.
B.Optional material: 304 stainless steel or aluminum alloy.

4. Motor and controller

A. Italy servo technology motor.More stable and quicker response.

B. Italy servo technology controller with English interface,easy to use.
C. Double encoder,absolute encoder+inbuilt incremental encoder,more accurate and few maitenance.

5. Commonly used color(Other color can be customized)

Red,Blue,Yellow,Orange,Grey,White,Green,Black,Silver...

6. Safety devices(All below three devices are included as standard)

A. Safety photo cell sensorWhen there is human or vehicle under the door,the door will stop closing and get up automatically.Thiswill avoid accident collisions.

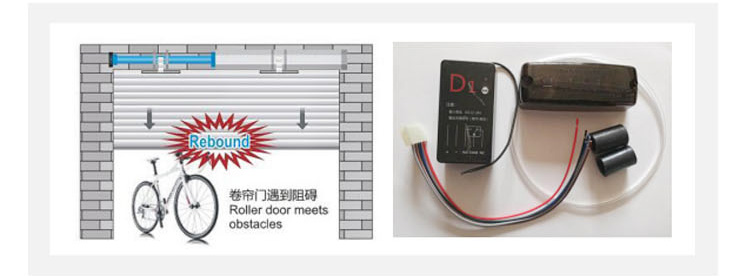

B. Safety bottom airbag sensor

When the bottom bar of the door touches something,it will stop closing immediately and get up automatically.

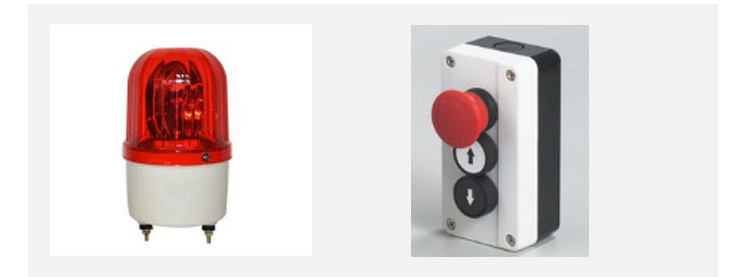

C. Alarm light and emergency buttons

The lamp flashing to warn passing human or vehicles.And buttons on both side.

7. Operation methods:

Vehicle loop detector,Radar sensor,Push button,Pull switch,Remote control

Product real shot:

6*6m PVC High Speed Roller Shutter Door Plastic Fabric 25m/S Wind Resistant
