Car Wash 1.0mm High Speed Roller Shutter Door With Radar Sensor And Pull Switch

Ask Lasest Price
Brand Name :	YUOU
Model Number :	Yuou-high speed-21
Certification :	ISO9001
Price :	$800.00 - $1300.00/Piece
Payment Terms :	D/A, L/C, , T/T, Western Union, MoneyGram
Supply Ability :	1000 Piece/Pieces per Month
Delivery Time :	7-10 work days

Add to Cart

Product Details
Company Profile

Car Wash 1.0mm High Speed Roller Shutter Door With Radar Sensor And Pull Switch

Car Wash Used Servo Technology PVC Fabric High Speed Shutter Rolling Up Doors With Radar Sensor And Pull Switch

Application:

High speed doors are widely used in food, chemical, textile, electronics, supermarket, cold storage, logistics, warehousing and other production efficiency, dust-free and high temperature level requirements.

Product details:

1. Technical data:

Max dimension :	width * height 6000mm*6000mm
Power supply:	220±10%V, 50/60Hz. Output power 0.75-1.5KW
Normal speed :	open1.2m/s close 0.6m/s
Max speed :	open 2.5m/s close 1.0m/s
Opening frequency :	1000 times /day
Wind resistance :	28m/s (Class 10)
Air tightness:	leakage through the door is 95m³/hour under 30 pa pressure

2. Door Curtain

Material: PVC Fabric,1.0mm thick

Features and performance:

UV-resistant, fire-resistant, anti-mildew, anti-bacteria, self-cleaning, oil-resistant, acid and alkali resistant, anti-wicking, anti-aging.

3. Steel structure

It includes two guide rails, one top cover and one motor cover.
Structure material: power coated galvanized steel.

Thickness: 1.5mm for guide rails, 1.0mm for top cover and motor cover.

4. Motor and controller

A. Italy servo technology motor.More stable and quicker response.

B. Italy servo technology controller with English interface,easy to use.
C. Double encoder,absolute encoder+inbuilt incremental encoder,more accurate and few maitenance.

5. Commonly used color(Other color can be customized)

Red,Blue,Yellow,Orange,Grey,White,Green,Black,Silver...

6. Safety devices(All below three devices are included as standard)

A. Safety photo cell sensorWhen there is human or vehicle under the door,the door will stop closing and get up automatically.Thiswill avoid accident collisions.

B. Safety bottom airbag sensor

When the bottom bar of the door touches something,it will stop closing immediately and get up automatically.

C. Alarm light and emergency buttons

The lamp flashing to warn passing human or vehicles.And buttons on both side.

7. Operation methods:

Vehicle loop detector,Radar sensor,Push button,Pull switch,Remote control

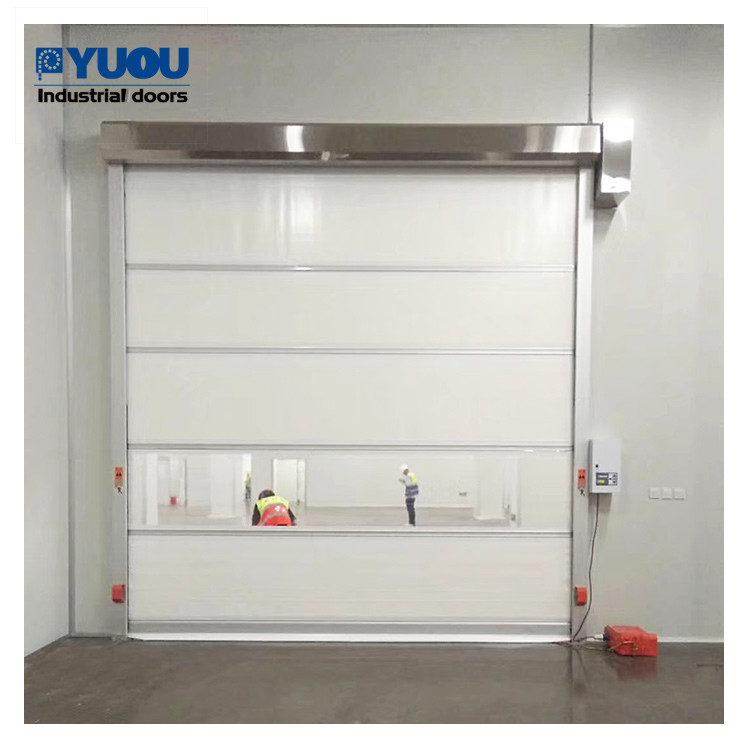

Product real shot:

Car Wash 1.0mm High Speed Roller Shutter Door With Radar Sensor And Pull Switch
