PVC Fabric Aircraft Hangar Door Industrial Large Size

Ask Lasest Price
Brand Name :	YUOU
Model Number :	YUOU-hangar door -3w
Certification :	ISO9001
Price :	USD4000-10000/set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000set/30days
Delivery Time :	10-30days according to your order quantity

Add to Cart

Product Details
Company Profile

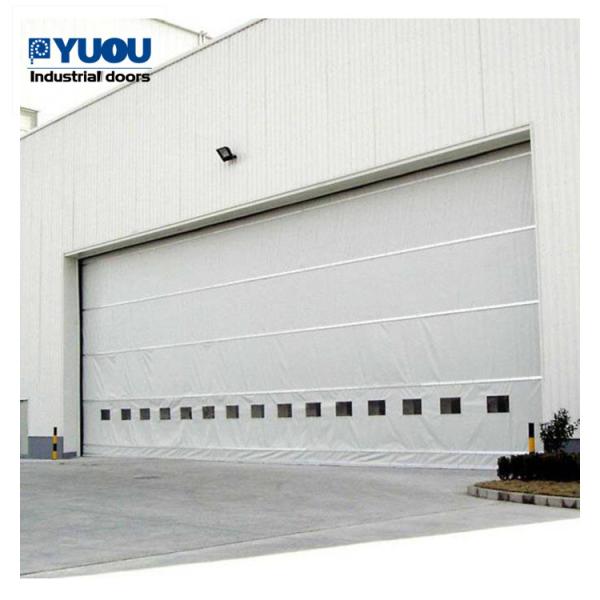

PVC Fabric Aircraft Hangar Door Industrial Large Size

Aircraft Hangar Door
Factory Large Size Industrial PVC Fabric Aircraft Hangar Door
widely used in large equipment manufacturing industries such as
airport freight, shipyards, power plants, coal enterprises, heavy
industry enterprises, military enterprises, etc., and large-scale
entrances and exits are required to be closed. The single door can
be manufactured in specifications: 6-60 meters high and 8-140
meters wide. Wind resistance rating: standard wind pressure
55kg/square. The maximum design wind pressure is 77kg/square.
Ascent speed: minimum 6 m/min (adjustable). Strong wind resistance,
good sealing and heat preservation, working temperature between
-30℃-70℃. The control system adopts special motor and special PLC
and frequency converter control. The vertical lifting and folding
storage of the strap save more three-dimensional space for the
entrance and exit, enhance the passability, the appearance is
beautiful and firm, and under harsh environmental conditions. It
also has good sealing performance when the wind pressure reaches
35m/s. The sealed brush can prevent wind and reduce noise.

Using location	External&Internal door
Door curtain material	1.2 mm thick PVC with transparent PVC stripe
Door frame	Standard galvanized steel(option: 304 stainless steel)
Door control system	Servo system English Man-Machine Interface, Self Trouble-Shooting Recognizing system
Door designing	Unique for the larger size
Motor location	both sides are ok
Safety system	standard built-in photo cell
Safe Equipment	Beep, Anti-wind Bar, Traffic Light, Emergency Handle, Shoulder Protection
Door max size	10m(W)x10m(H)
Wind load max	28m/s
Opening speed	0.6-1.2m/s
Closing speed	0.6m/s
Color	Yellow/blue/white
Option	induction loop, radar, pull-cord, push button, remote control

Features:
1. Surface is PVC fabric, double layer and beautiful.
2. Main skeleton is formed with steel tubes. It is designed through precise structure calculation with universal steel structure software, meeting requirements of wind resistance.
3. Safety Drop-proof device, can stop falling of door body when the steel wire of motor breaks suddenly, protecting human life under the door.
4. Multi-limit design guarantees precise running.
5. Inching control design makes sure there will always be a human operating the door when it runs. This can avoid accidents caused by human-absence.
6. High safety class of motor and steel wire, guarantees reliable operation.

PVC Fabric Aircraft Hangar Door Industrial Large Size

F A Q:

1. What's the payment details?
Deposit before production, and balance before shipment.

2. What's the delivery time?
For common order, about 7 days only.

3. What about the warranty for the doors?
We provide 12 months warranty for all doors and accessories.

4. Do you provide OEM Service?
Yes. OEM & ODM Service is ok for us.

5. What's the MOQ?
We accept 1 set as sample order.

6. How about the package?
Plywood case or Cardboard, suitable for sea freight or air freight, as your request
